A
Lilla
Lilla frame · White decals
A luminous lilac laid down in uniform lacquer across the full frame. Light and unmistakable on its own, finished with clean white script that keeps the look refined and race-ready.
Frame
Lilla
Decals
Bianco
Thomas · by Tommasini
Thomas is not a Tommasini.
And that's exactly right.
Tommasini is the atelier, steel, titanium, made to measure. Thomas is the circuit, carbon, watts, the stopwatch. Two souls of the same family, born sixty years ago from Irio Tommasini's own racing career: today we still race, with the same obsession for detail.
Tommasini T68 · Carbon Platform
Racing.
One frame. Four liveries. Built to win, not just to ride.
The T68 is our carbon road platform, High-Modulus Toray T1000, hand-finished in Tuscany, UCI approved. Where our steel and titanium collections are built around a conversation, the T68 is built around a stopwatch. Four liveries, five sizes, zero compromises.

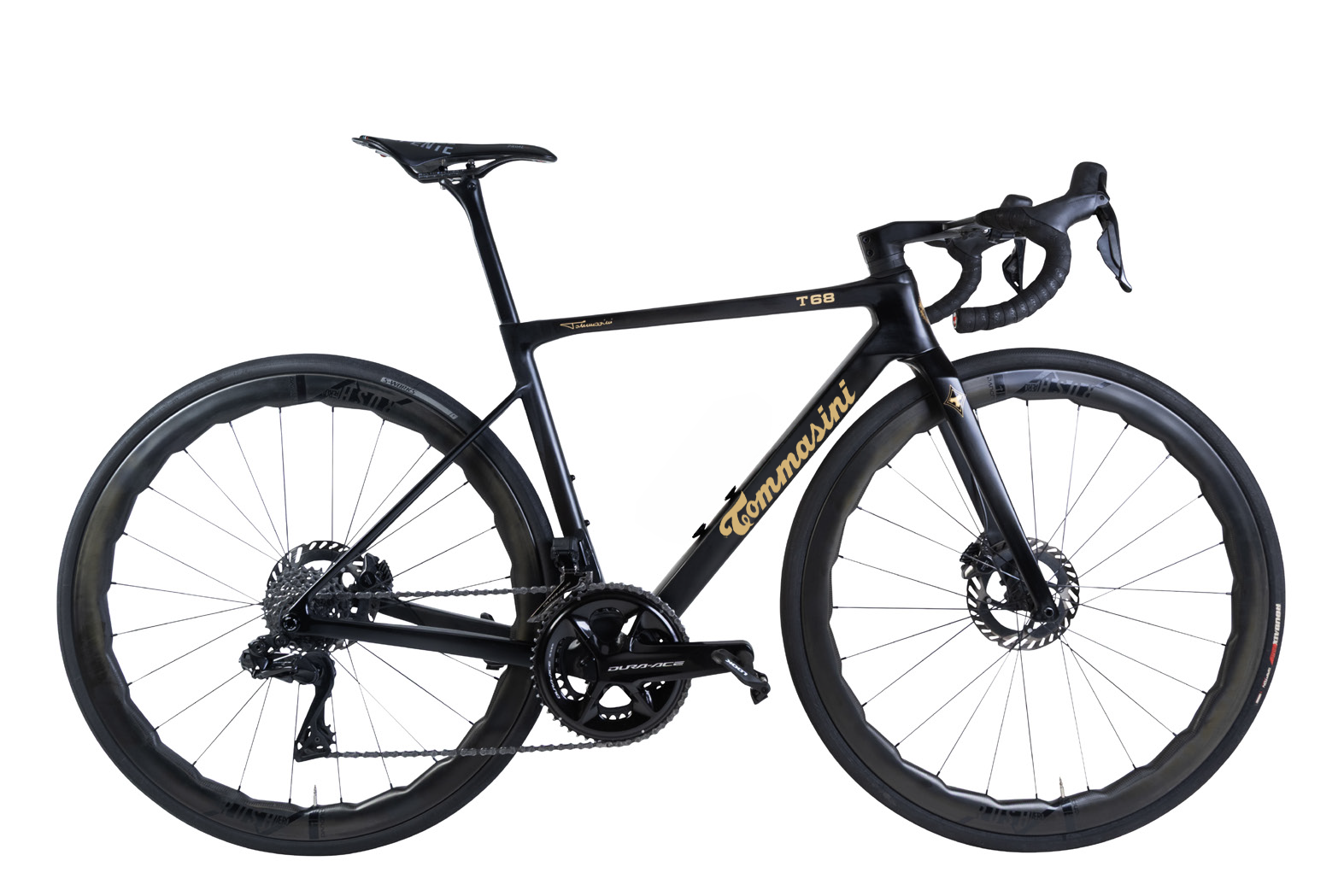

Reference frame · Nero / Oro
The Four Liveries
A — D

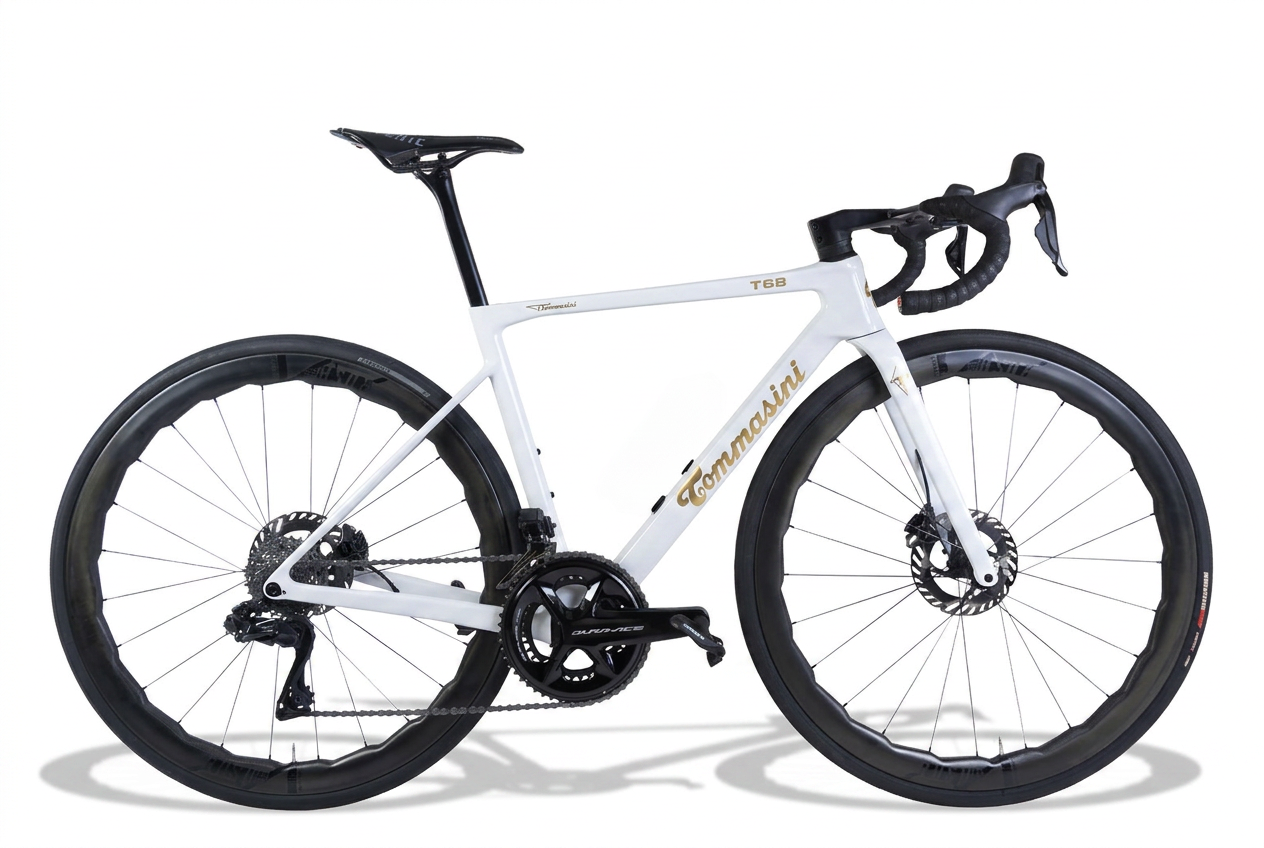

B
Bianco Oro
White frame · Gold decals
The reference. White lacquer and warm metallic gold lettering, the most enduring Tommasini livery, distilled onto the T68 carbon platform.
Frame
Bianco
Decals
Oro

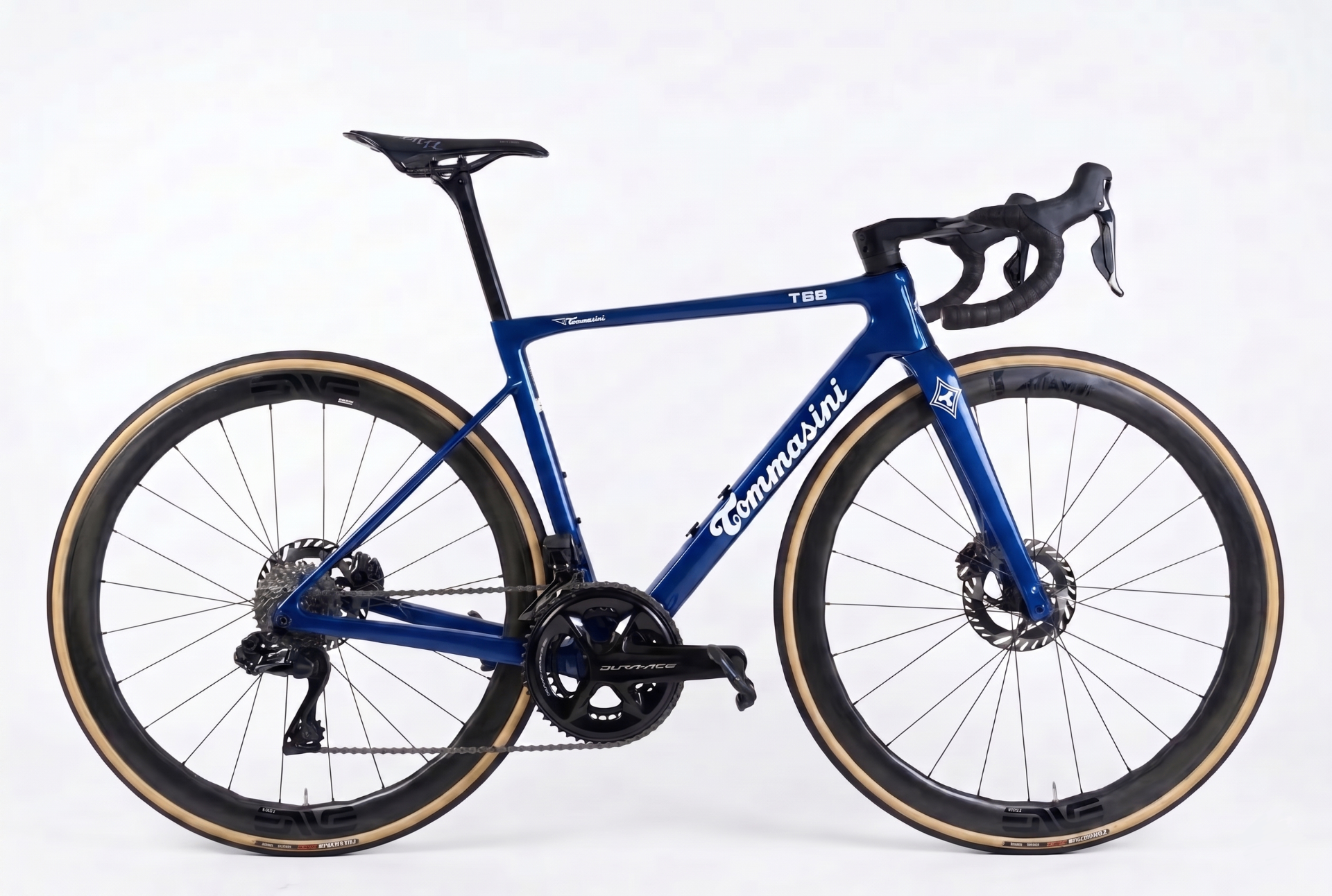

C
Blu Racing
Blu Racing frame · White decals
A pure racing blue, lifted by crisp white script. Built for riders who want their machine to look as fast standing still as it does at speed.
Frame
Blu Racing
Decals
Bianco

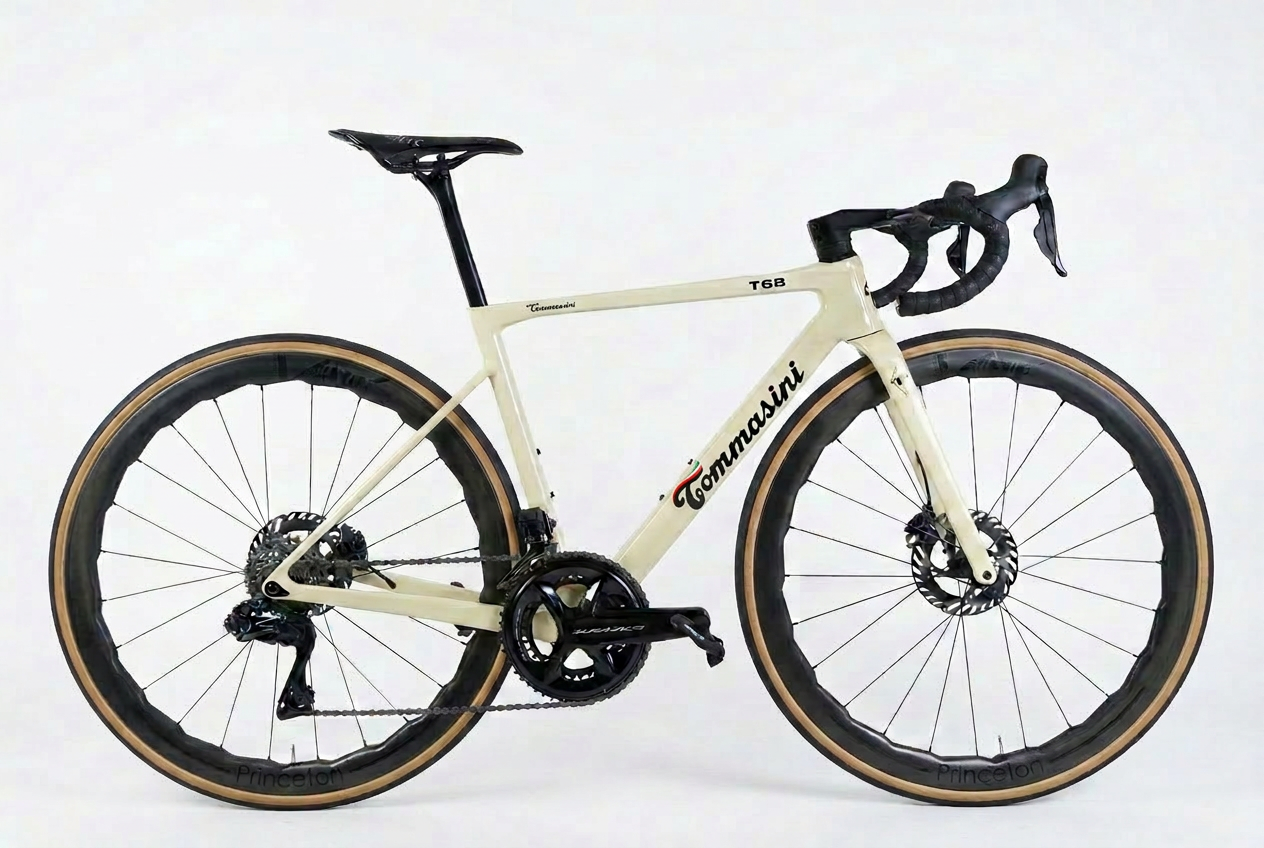

D
Crema Tricolore
Frame #380 · Black decals · Tricolore logo
Warm cream lacquer 380 with the historic Tommasini script in deep black on the down tube, and the Italian tricolore woven into the logo itself, a small green-white-red pennant flying from the tip of the capital T. Restrained, patriotic, and unmistakably ours.
Frame
#380
Decals
Nero
Technical Specifications
Platform, geometry and frame compatibility of the T68 carbon road frame.
Platform
The frame
- Frame weight
- 780 g
- Material
- High-Modulus Toray T1000 carbon (frame, fork, handlebar, seatpost)
- Type
- Road · disc brakes
- Design
- Optimised for stiffness and power transfer
- Sizes
- 50 · 52 · 54 · 56 · 58
- UCI
- Approved
Geometry
Five sizes
A complete size run from 50 to 58, each frame hand-finished in Tuscany, Italy.
Size50Reach 367
- S
- 447
- TT
- 520
- SA
- 73.5°
- HT
- 95
- HA
- 71°
- F
- 368
- OT
- 45
- WB
- 972
- FC
- 572.2
- RC
- 410
- G
- 69
- REACH
- 367
- STACK
- 500
Size52Reach 371
- S
- 467
- TT
- 528.7
- SA
- 73.5°
- HT
- 110±0.5
- HA
- 72°
- F
- 368
- OT
- 45
- WB
- 973
- FC
- 573
- RC
- 410
- G
- 69
- REACH
- 371
- STACK
- 517.1
Size54Reach 388
- S
- 493±1
- TT
- 551.5
- SA
- 73°
- HT
- 134±0.5
- HA
- 73°
- F
- 368
- OT
- 45
- WB
- 982
- FC
- 582
- RC
- 410
- G
- 69
- REACH
- 388
- STACK
- 536
Size56Reach 395.1
- S
- 515
- TT
- 563.5
- SA
- 73°
- HT
- 151±0.5
- HA
- 73°
- F
- 368
- OT
- 45
- WB
- 994
- FC
- 593.9
- RC
- 410
- G
- 69
- REACH
- 395.1
- STACK
- 552.2
Size58Reach 402.7
- S
- 546
- TT
- 583.4
- SA
- 73°
- HT
- 185
- HA
- 73°
- F
- 368
- OT
- 45
- WB
- 1014
- FC
- 614
- RC
- 410
- G
- 69
- REACH
- 402.7
- STACK
- 592.5
All values in millimetres unless marked as degrees.
- S
- seat tube length
- TT
- top tube (horizontal)
- SA
- seat angle
- HT
- head tube length
- HA
- head angle
- F
- fork length
- OT
- fork offset / rake
- WB
- wheelbase
- FC
- front centre
- RC
- rear centre (chainstay)
- G
- bottom-bracket drop
- REACH
- BB to head-tube top, horizontal
- STACK
- BB to head-tube top, vertical
Frame Compatibility
Build it your way
- Tyre clearance
- up to 700×32C (min 4 mm side clearance, tyre fitted)
- Front thru-axle
- 100×12 mm, P1.5 — 8–9 Nm
- Rear thru-axle
- 142×12 mm, P1.0 — 8–9 Nm
- Bottom bracket
- T47 · English thread (threaded, BSA-compatible shell)
- Brake rotors
- 140 / 160 mm (default: 160 front · 140 rear)
- Derailleur hanger
- UDH (universal standard) — 12 Nm
- Seatpost
- carbon · 400 mm · 15 mm offset · cut-to-length
- Stem clamp diameter
- 28.6 mm
- Max system weight
- 100 kg / 220 lb (rider + gear + cargo)
- Intended use
- paved road only
Reference
Colour palette
Codes refer to the Tommasini 2026 colour book. Hex values are indicative for screen reproduction only.
Lilla
#C468DE
380
#f0efdc
Blu Racing
#0047bb
Bianco
#ffffff
Nero
#1a1a1a
Oro
#c8a24a
